In the complex world of electrical power systems, one of the most fascinating and critically important phenomena occurs during fault conditions. When a short-circuit fault strikes an electrical system, something remarkable happens: the very machines we typically think of as loads—motors and generators—suddenly transform into temporary power sources, injecting additional current into the fault. This phenomenon, known as fault current contribution, can dramatically affect system behavior and protection coordination.
Understanding these contributions is not merely an academic exercise. With the increasing sophistication of protection systems and the growing complexity of modern electrical installations, engineers must have a thorough grasp of how rotating machines behave during fault conditions. The stakes are high: underestimating fault current contributions can lead to inadequate protection coordination, equipment damage, and safety hazards. Conversely, overestimating these contributions can result in unnecessarily oversized equipment and increased costs.
This comprehensive guide explores the intricacies of fault current contributions from both induction motors and synchronous generators, providing practical insights for electrical engineers working in industrial, commercial, and utility environments.
The Physics Behind the Phenomenon
The Fundamental Principle
To understand fault current contributions, we must first grasp what happens in the moments immediately following a fault. When a short-circuit occurs, the system voltage at the fault location drops dramatically—often to near zero. This sudden voltage collapse creates a disturbance that propagates throughout the electrical system.
Rotating machines, whether motors or generators, possess significant amounts of stored magnetic energy in their rotating magnetic fields. When the system voltage drops, these machines cannot instantaneously adjust their magnetic field strength. The inertia of both the mechanical rotor and the magnetic field means that the machine continues to behave as if the pre-fault conditions still exist, at least initially.
This mismatch between the machine’s magnetic field (which “remembers” the pre-fault voltage) and the actual system voltage creates a driving force that pushes current from the machine into the fault. In essence, the rotating magnetic field acts as a temporary generator, trying to maintain the voltage it was designed to support.
The Decay Characteristic
The fault current contribution from rotating machines exhibits a distinctive exponentially decaying characteristic. This decay occurs because the machine cannot sustain its contribution indefinitely without external excitation. As the magnetic field weakens due to losses and the absence of proper voltage supply, the fault current contribution diminishes.
The decay follows three distinct phases:
- Sub-transient period (0-10 milliseconds): Highest current contribution with rapid decay
- Transient period (10-500 milliseconds): Moderate current with slower decay
- Steady-state period (>500 milliseconds): Minimal or zero contribution
This time-dependent behavior is crucial for protection system design, as different protective devices may see vastly different fault current levels depending on their operating speed.
Induction Motor Contributions: The Workhorses of Industry
Why Induction Motors Matter
Induction motors represent the backbone of industrial electrical systems, often accounting for 60-70% of total electrical load in manufacturing facilities. Their ubiquity means that their collective fault current contribution can significantly impact system behavior during fault conditions.
The key insight is that only motors actually running at the time of the fault will contribute to short-circuit current. A motor that is switched off has no rotating magnetic field and therefore cannot contribute fault current. This seems obvious, but it has important implications for fault studies: engineers must carefully consider the operating scenarios when calculating fault currents.
Determining Which Motors to Include
The question of which motors to include in fault current calculations is both practical and economic. Including every small motor in a facility would be computationally intensive and potentially unnecessary, while ignoring significant motor loads could lead to dangerous underestimation of fault currents.
ENA Engineering Recommendation P25 provides practical guidance, suggesting that three-phase motors rated at 200 kVA and above should be explicitly considered. However, this threshold is not absolute. Several scenarios require broader consideration:
Aggregated Small Motors: A facility might have dozens of smaller motors that individually fall below the 200 kVA threshold but collectively represent a significant load. For example, a manufacturing plant with fifty 50 kVA motors has an aggregate motor load of 2.5 MVA—certainly significant enough to affect fault current calculations.
Single-Phase Motor Groups: In some installations, groups of single-phase motors are connected across the three phases of the supply. Three identical single-phase motors, each connected to a different phase, effectively form a three-phase motor group that should be considered as a unit.
Critical System Locations: In locations where protection coordination is particularly critical, it may be prudent to include smaller motors that would normally be ignored. The additional computational effort is often justified by the improved accuracy and safety margins.
Calculation Methodologies
The Five-Times Rule
The simplest approach to estimating induction motor fault current contribution is the “five-times rule.” This rule of thumb suggests that induction motors will contribute approximately five times their full-load current to the initial symmetrical short-circuit current. While crude, this method provides a quick estimate suitable for preliminary studies.
For example, a 500 kVA motor with a full-load current of 625 A (assuming 480V, three-phase) would contribute approximately 3,125 A to the fault current. This simple calculation can be performed quickly for multiple motors to assess their collective impact.
Sub-Transient Reactance Method
For more accurate calculations, the motor’s sub-transient reactance (X”) provides the key parameter. This reactance represents the motor’s impedance to rapidly changing currents and directly determines the magnitude of fault current contribution.
The fault current contribution is calculated as: I_fault = V_pre-fault / X”
Where V_pre-fault is the system voltage just before the fault occurs.
When sub-transient reactance data is unavailable, the locked rotor reactance (XLR) serves as an acceptable substitute. Locked rotor reactance is more commonly available on motor nameplates and represents the motor’s impedance when starting.
Group Motor Analysis
For facilities with many small motors where individual impedance data is impractical to obtain, engineers can use typical reactance values. Industry experience suggests using reactance values between 0.2 and 0.28 per unit, with the lower value providing more conservative (higher) fault current estimates.
This approach requires some engineering judgment. A facility with predominantly older, less efficient motors might warrant using the lower reactance values, while a modern facility with high-efficiency motors might justify using higher reactance values.
Advanced Considerations: Time-Variant Analysis
Modern protection systems, particularly those using numerical relays and fast-acting devices, may operate within the first few cycles of a fault. For these applications, the time-variant nature of motor fault current contribution becomes critically important.
The total motor contribution consists of both AC and DC components, both of which decay at different rates:
AC Component: Decays based on the motor’s time constants, typically reaching negligible levels within 100-200 milliseconds.
DC Component: Decays based on the motor’s X/R ratio, with higher X/R ratios leading to slower decay.
For critical applications, IEEE standards provide detailed methodologies for calculating these time-variant components, allowing engineers to determine the exact fault current contribution at any point in time.
Synchronous Generator Contributions: Complexity in Motion
The Generator Difference
Synchronous generators present a more complex scenario than induction motors. Unlike motors, which are primarily reactive to system conditions, generators are designed to actively maintain voltage and frequency. This active role continues, to some extent, even during fault conditions.
When a three-phase fault occurs at or near a synchronous generator’s terminals, the machine’s response is more dramatic and sustained than that of an induction motor. The generator’s automatic voltage regulator (AVR) and excitation system initially attempt to maintain terminal voltage by increasing field current, potentially leading to very high initial fault currents.
The Three-Phase Response
The characteristic response of a synchronous generator to a sudden three-phase short-circuit reveals three distinct periods:
Sub-Transient Period (0-50 milliseconds): The highest fault current contribution, determined by the generator’s sub-transient reactance (X”d). During this period, both the main field winding and the damper windings contribute to the current.
Transient Period (50-500 milliseconds): Moderate fault current, determined by the transient reactance (X’d). The damper winding effects have diminished, but the main field winding continues to contribute.
Steady-State Period (>500 milliseconds): The sustained fault current, determined by the synchronous reactance (Xd) and the excitation system capability.
Excitation System Impact
The behavior of a synchronous generator during fault conditions is heavily influenced by its excitation system. Modern generators equipped with static excitation systems and fast-acting AVRs can maintain higher fault currents for longer periods than older generators with rotating exciters.
This difference has practical implications for protection coordination. A generator with a fast excitation system might sustain significant fault current contribution for several seconds, affecting the operation of backup protection systems. Conversely, a generator with a slow excitation system might see its contribution decay quickly, potentially affecting the sensitivity of protection relays.
Generator Protection Considerations
The high fault current contribution from synchronous generators creates unique protection challenges:
Differential Protection: The high internal fault currents require careful consideration of current transformer saturation and differential relay stability.
Distance Protection: The generator’s fault current contribution can affect the impedance seen by distance relays on connected transmission lines.
Loss of Excitation Protection: During some fault conditions, the generator might lose excitation, requiring specialized protection schemes.
Calculation Standards and Guidelines
BS EN 60909-0:2016: The International Standard
For precise fault current calculations involving rotating machines, BS EN 60909-0:2016 provides the definitive methodology. This standard offers detailed procedures for calculating fault currents at different time instances, considering the various time constants of rotating machines.
The standard’s approach recognizes that different protection devices may operate at different times during a fault, seeing different levels of fault current contribution. It provides calculation methods for:
- Initial symmetrical short-circuit current (at time t = 0)
- Peak short-circuit current (maximum instantaneous value)
- Symmetrical short-circuit breaking current (at relay operating time)
- Steady-state short-circuit current (after transients have decayed)
ENA Engineering Recommendation P25
For practical applications in UK distribution systems, ENA Engineering Recommendation P25 provides simplified guidelines that balance accuracy with practicality. The recommendation offers tabulated values for common scenarios, reducing the computational burden while maintaining adequate accuracy for most applications.
The recommendation’s approach recognizes that distribution system engineers often need quick, reliable estimates rather than highly detailed calculations. It provides conservative values that ensure adequate safety margins while avoiding excessive over-design.
Practical Application Guidelines
When applying these standards in real-world scenarios, several practical considerations emerge:
Data Availability: Detailed machine parameters are not always available, particularly for older equipment. Engineers must balance the desire for accuracy with the reality of available information.
System Complexity: Large industrial facilities may have hundreds of motors and multiple generators. Computational tools become essential for managing this complexity.
Operating Scenarios: Different operating configurations can significantly affect fault current contributions. Engineers should consider multiple scenarios to ensure robust protection coordination.
Modern Challenges and Considerations
Fast-Acting Protection Systems
The traditional assumption that motor and generator contributions can be ignored after 5-6 cycles is increasingly challenged by modern protection technology. Digital relays with sub-cycle operating times may see the full magnitude of machine contributions, requiring more sophisticated analysis.
This trend toward faster protection has several implications:
Higher Fault Duty: Protection equipment must be rated for higher fault currents, considering the full contribution from rotating machines.
Coordination Complexity: The time-variant nature of fault contributions complicates protection coordination studies.
Arc Flash Analysis: The higher initial fault currents can significantly impact arc flash calculations and safety procedures.
Distributed Generation
The increasing penetration of distributed generation, including synchronous generators, inverter-based resources, and motor-generators, adds new complexity to fault current calculations. Each type of distributed resource has unique fault current contribution characteristics that must be considered.

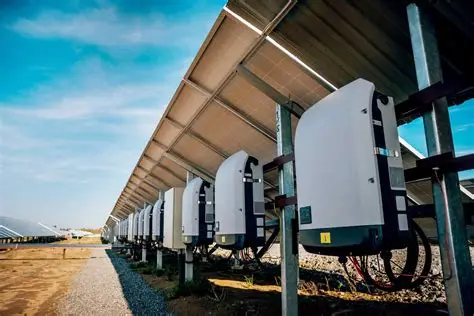

Inverter-based resources, in particular, present new challenges. Unlike rotating machines, inverters can actively control their fault current contribution, often limiting it to values near their rated current for equipment protection reasons.
Variable Speed Drives
The widespread adoption of variable frequency drives (VFDs) affects motor fault current contributions. Motors fed through VFDs may have different fault current characteristics than those connected directly to the utility supply, depending on the drive’s control strategy and protection systems.
Protection System Coordination
Time-Current Coordination
Understanding fault current contributions is essential for proper time-current coordination of protective devices. The decaying nature of these contributions means that different protective devices may see different fault current levels, depending on their operating characteristics.
Consider a coordination study involving an upstream circuit breaker with an operating time of 100 milliseconds and a downstream fuse with a melting time of 50 milliseconds. The fuse will see a higher fault current (including full motor contribution) than the circuit breaker (which sees partially decayed motor contribution). This difference must be accounted for in the coordination study.
Relay Settings
Modern numerical relays offer sophisticated options for handling fault current contributions from rotating machines. Some relays can model the decaying characteristics of motor contributions, adjusting their response accordingly. Understanding these capabilities allows engineers to optimize relay settings for both security and dependability.
Arc Flash Considerations
The high initial fault currents from rotating machine contributions significantly impact arc flash calculations. The incident energy depends on both the fault current magnitude and the clearing time, both of which are affected by machine contributions.
Engineers must carefully consider which time point to use for arc flash calculations. Using the initial fault current (including full machine contributions) with fast protective device clearing times may overestimate incident energy. Conversely, using steady-state fault currents with slow clearing times may underestimate the hazard.
Future Trends and Technologies
Smart Grid Integration
The evolution toward smart grid technologies brings new challenges and opportunities for handling fault current contributions. Advanced metering infrastructure and real-time monitoring systems can provide better visibility into the operating status of rotating machines, improving the accuracy of fault current calculations.
Smart protection systems can potentially adapt their settings based on real-time system conditions, optimizing protection coordination for the actual system configuration rather than worst-case assumptions.
Energy Storage Systems
Battery energy storage systems (BESS) and other energy storage technologies introduce new sources of fault current contribution. Unlike rotating machines, these systems can potentially control their fault current contribution through power electronic interfaces, creating new possibilities for system protection and coordination.
Renewable Energy Integration
The integration of renewable energy sources, particularly wind turbines with synchronous generators, adds complexity to fault current calculations. These machines may have different characteristics than traditional synchronous generators, requiring updated analysis methods.
Practical Implementation Guidelines
Data Collection and Management
Successful implementation of comprehensive fault current studies requires systematic data collection and management. Engineers should establish databases containing:
- Motor and generator nameplate data
- Impedance values and time constants
- Operating schedules and loading patterns
- Protection device characteristics
- System configuration data
Computational Tools
Modern fault current calculations involving numerous rotating machines require sophisticated computational tools. Engineers should invest in software packages that can handle:
- Large numbers of machines
- Time-variant analysis
- Multiple operating scenarios
- Integration with protection coordination studies
Documentation and Review
Given the complexity of fault current contributions and their impact on system protection, thorough documentation is essential. Studies should clearly document:
- Assumptions and methodologies
- Data sources and limitations
- Sensitivity analyses
- Recommendations for future updates
Regular review and updating of fault current studies ensures continued accuracy as systems evolve and new equipment is added.
Conclusion: Mastering the Complexity
Understanding fault current contributions from motors and generators represents one of the more challenging aspects of power system analysis. The physics is complex, involving electromagnetic transients, mechanical inertia, and control system responses. The mathematics can be sophisticated, requiring consideration of time-varying parameters and multiple system configurations. The practical implementation demands careful attention to data quality, computational tools, and documentation.
Yet mastering these concepts is essential for modern electrical engineers. As protection systems become faster and more sophisticated, as industrial processes become more critical, and as power systems become more complex, the accurate calculation of fault current contributions becomes increasingly important.
The key to success lies in understanding the fundamental physics while maintaining a practical perspective. Engineers must balance computational sophistication with available data, theoretical accuracy with practical limitations, and comprehensive analysis with project constraints.
The principles outlined in this guide provide a foundation for this understanding. By grasping the behavior of rotating machines during fault conditions, applying appropriate calculation methodologies, and considering the practical aspects of implementation, engineers can ensure that their systems are properly protected while avoiding unnecessary over-design.
The field continues to evolve with new technologies and changing system requirements. Staying current with standards, best practices, and emerging technologies ensures that engineers can continue to design safe, reliable, and economical electrical systems.
As we look toward the future, the fundamental principles of fault current contributions will remain relevant, even as the specific technologies and applications continue to evolve. The rotating machines that have powered industry for over a century will continue to play important roles, and understanding their behavior during fault conditions will remain a critical skill for electrical engineers.
Whether you’re designing protection systems for a new industrial facility, troubleshooting coordination issues in an existing installation, or conducting arc flash studies for worker safety, the concepts covered in this guide provide the foundation for successful analysis and implementation. The complexity may seem daunting at first, but with careful study and practical application, these concepts become powerful tools in the electrical engineer’s toolkit.
